Project Description

General Description

  • Mechanical weighbridge according to International Standards (OIML, EUROPEAN STANDARDS)
  • With foundation
  • Mechanical underground mechanism
  • Weighing platform
  • Mechanical weighing indicator
  • Electronic weighing indicator
  • Dimensions, weighing capacity and division depending on customer needs
  • Mostly used dimensions 8×3, 12×3, 16×3, 18×3, 20×3
  • Mostly used weighing capacities 50t, 60t, 70t, 80t, 100t
  • Mostly used divisions 1kg, 5kg, 10kg, 20kg

Spare Parts Analysis

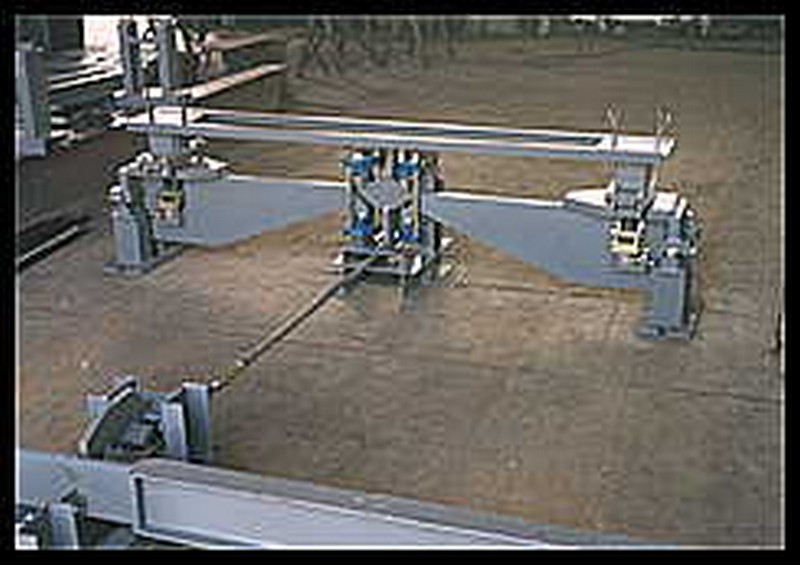

Underground mechanism consists of :

  • knives and edges manufactured from special steel of 62-64 RC hardness after the overhauling
  • the fixed points (4,6 or 8) that protect the lever system from the platform vibrations
  • the main and the auxiliary levers from excellent quality steel

The weighing platform which can be of one of the following construction types:

  • Type B the main beams and the platform are made from quality C20/25 armoured concrete and steel armature STAHL III
  • Type M or N the main beams are made from iron and the platform from checkered plate
  • Type P the main beams are made from iron and the platform from quality C20/25 armoured concrete and steel armature STAHL III

Τhe weighing indicator which completes the system:

  • Mechanical weighing indicator (TS-2000 ή steelyard)
  • Electronic weighing indicator type MSZ
